Wartung & Überwachung TMHN 7

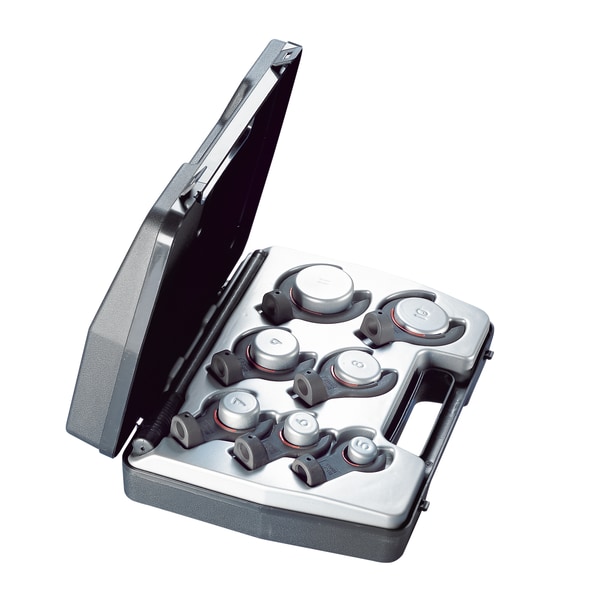

Wellenmutterschlüsselsatz
Typ Wartung & ÜberwachungAngebot anfordern
Technische Daten
| Outer diameter lock nut (range) (d₃) (mm) | 75, 38 |
| Handle length (Lₕ) (mm) | 306 |
| Length (L) (mm) | 388 |
| Working length (l) (mm) | 354 |
| Dimensioni custodia (l x h x w) | 345 x 85 x 255 mm |
| Applicazioni consigliate | Suitable as a controlled drive-up method for certain sizes of Self Aligning Ball Bearings (SABB) by tightening lock nuts in split plummer (pillow) block housings. Alternatively it can be used on bearing arrangements with lock nuts on shafts, adapter sleeves, and withdrawal sleeves. Also suitable for loosing lock nuts in mentioned applications. |
| Series | Spanner set, for housings |
| Version | Kit |
| Tipo | Model B |
| Consente il montaggio dei cuscinetti | Yes, angle method |
| Compatibile con ghiere di bloccaggio in supporti ritti in due metà (SNL) di SKF | Sì |
| Locknut size | 11, 5 |
| Suitable SKF Locknut | KM 5, KM 6, KM 7, KM 8, KM 9, KM 10, KM 11, KMFE 5, KMFE 6, KMFE 7, KMFE 8, KMFE 9, KMFE 9 H, KMFE 10, KMFE 11, KMK 5, KMK 6, KMK 7, KMK 8, KMK 9, KMK 10, KMK 11, N 06, N 08, N 09, N 10 |
| Materiali | Alloy engineering steel |
| Movimentazione materiali | Manico in acciaio con impugnatura in gomma |
| Rivestimento | Fosfatato nero |
| Colore | Black metallic with orange mounting angle indications |
| Contenuto | 7x Spanners, sizes 5 to 11;1x Handle;1x Carrying case |
| Peso netto prodotto (kg) | 2.17 |
| Codice eClass | 23-05-19-01 |
| Codice UNSPSC | 27111712 |
