SKF

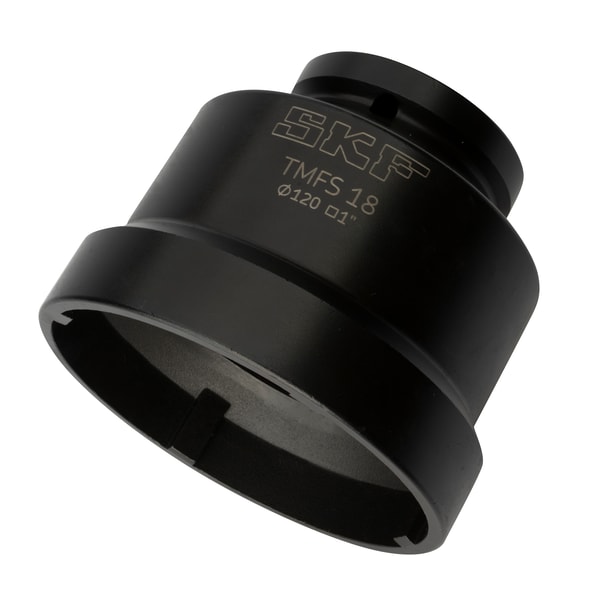

Maintenance et surveillance TMFS 18
Clés à douilles pour écrous de serrage
Type Maintenance et surveillance
Dimensions
Ø 0 × 131 × 0 mm
d0Ø alésage (mm)
×
D131Ø extérieur (mm)
×
B0Largeur (mm)
Demande de devis
Spécifications techniques
| Locknut size | 18, 18 |
| Outer diameter lock nut (range) (d₃) (mm) | 120, 120 |
| Drive connection (C) | 1" |
| Height (H) (mm) | 110 |
| Effective height (h) (mm) | 80 |
| Diametro esterno (mm) | 131 |
| Applicazioni consigliate | For a controlled use with torque wrenches or power tools for safe tightening or loosening of lock nuts on shafts, adapter sleeves, and withdrawal sleeves or in blind housings. Also particullarly suitable for applications where space limitations prevent the use of hookspanners. |
| Series | Axial lock nut socket, TMFS |
| Tipo | Model A |
| Consente il montaggio dei cuscinetti | No |
| Compatibile con ghiere di bloccaggio in supporti ritti in due metà (SNL) di SKF | No |
| Suitable SKF Locknut | KM 18, KMFE 18, KMK 18 |
| Materiali | Acciaio legato ingegnerizzato, temprato e bonificato |
| Rivestimento | Ossidazione nera |
| Colore | Nero metallizzato |
| Peso netto prodotto (kg) | 2.94 |
| Codice eClass | 23-05-19-01 |
| Codice UNSPSC | 27111712 |
