SNR

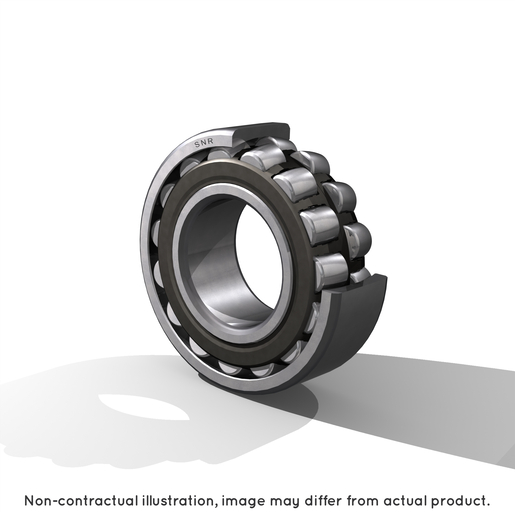

Cuscinetti orientabili a rulli 22211EAC3
Cuscinetto SNR 22211EAC3, Ø55×100×25 mm. Richiedi offerta — spedizione in tutto il mondo.
Tipo Cuscinetti orientabili a rulli
Dimensioni
Ø 55 × 100 × 25 mm
d55Ø foro (mm)
×
D100Ø esterno (mm)
×
B25Larghezza (mm)
Richiesta offerta
Disponibile
Specifiche tecniche
| Brand | SNR |
| d - Internal diameter | 55 mm |
| D - External diameter | 100 mm |
| B - Bearing/Inner ring width | 25 mm |
| d2 - External diameter inner ring | 66 mm |
| D1 - Inner diameter outer ring | 89,7 mm |
| rs - Min fillet radius | 1,5 mm |
| Number of lubrication holes | 0 |
| b - Groove width | 0 mm |
| k - Hole diameter | 0 mm |
| Radial clearance class | C3 |
| Mass | 0,823 kg |
| C - Dynamic load | 155000000 mN |
| C0 - Static load | 148000000 mN |
| Cu - Fatigue limit load | 18000000 mN |
| e - Coefficient | 0.23 |
| Y0 - Static axial load coefficient | 2.89 |
| Y1 - Lower axial load coefficient | 2.95 |
| Y2 - Upper axial load coefficient | 4.39 |
| N ref - Reference thermal speed | 36600 °/s |
| N lim - Mechanical Limit Speed | 49200 °/s |
| Tmin - Min operating temperature | 233,15 °K |
| Tmax - Max operating temperature | 473,15 °K |
| BPFO - Over rolling frequency on outer ring (60 rpm) | 7,618 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 10,382 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 6,287 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 3,144 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,423 Hz |
| da max - Max shoulder diameter IR | 0 mm |
| da min - Min shoulder diameter IR | 64 mm |
| Da max - Max shoulder diameter OR | 91 mm |
| ra max - Max shaft & housing fillet radius | 1,5 mm |
