SNR

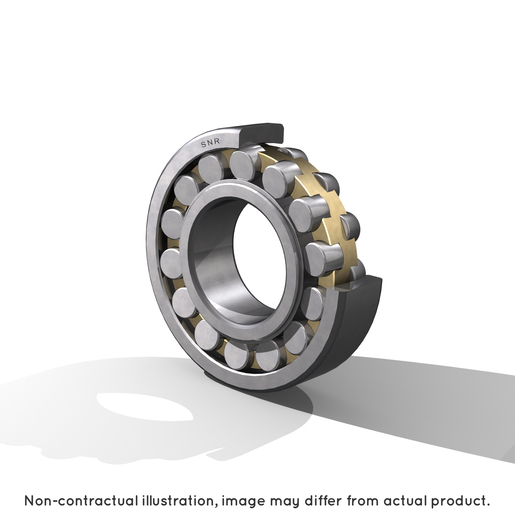

Cuscinetti orientabili a rulli 22324EMC3
Cuscinetto SNR 22324EMC3, Ø120×260×86 mm. Richiedi offerta — spedizione in tutto il mondo.
Tipo Cuscinetti orientabili a rulli
Dimensioni
Ø 120 × 260 × 86 mm
d120Ø foro (mm)
×
D260Ø esterno (mm)
×
B86Larghezza (mm)
Richiesta offerta
Disponibile
Specifiche tecniche
| Brand | SNR |
| d - Internal diameter | 120 mm |
| D - External diameter | 260 mm |
| B - Bearing/Inner ring width | 86 mm |
| d2 - External diameter inner ring | 0 mm |
| D1 - Inner diameter outer ring | 224 mm |
| rs - Min fillet radius | 3 mm |
| Number of lubrication holes | 0 |
| b - Groove width | 0 mm |
| k - Hole diameter | 0 mm |
| Radial clearance class | C3 |
| Mass | 22,75 kg |
| C - Dynamic load | 1170000000 mN |
| C0 - Static load | 1280000000 mN |
| Cu - Fatigue limit load | 127000000 mN |
| e - Coefficient | 0.32 |
| Y0 - Static axial load coefficient | 2.04 |
| Y1 - Lower axial load coefficient | 2.09 |
| Y2 - Upper axial load coefficient | 3.11 |
| N ref - Reference thermal speed | 12000 °/s |
| N lim - Mechanical Limit Speed | 15000 °/s |
| Tmin - Min operating temperature | 233,15 °K |
| Tmax - Max operating temperature | 473,15 °K |
| BPFO - Over rolling frequency on outer ring (60 rpm) | 6,578 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 9,422 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 5,328 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 2,664 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,411 Hz |
| da max - Max shoulder diameter IR | 0 mm |
| da min - Min shoulder diameter IR | 134 mm |
| Da max - Max shoulder diameter OR | 246 mm |
| ra max - Max shaft & housing fillet radius | 2,5 mm |
