SNR

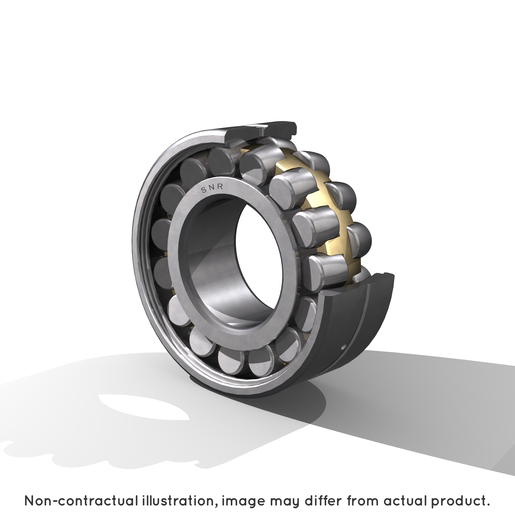

Cuscinetti orientabili a rulli 24140EMK30W33
Cuscinetto SNR 24140EMK30W33, Ø200×340×140 mm. Richiedi offerta — spedizione in tutto il mondo.
Tipo Cuscinetti orientabili a rulli
Dimensioni
Ø 200 × 340 × 140 mm
d200Ø foro (mm)
×
D340Ø esterno (mm)
×
B140Larghezza (mm)
Richiesta offerta
Disponibile
Specifiche tecniche
| Brand | SNR |
| d - Internal diameter | 200 mm |
| D - External diameter | 340 mm |
| B - Bearing/Inner ring width | 140 mm |
| D1 - Inner diameter outer ring | 291 mm |
| rs - Min fillet radius | 3 mm |
| Number of lubrication holes | 3 ou 8 |
| b - Groove width | 16,98 mm |
| k - Hole diameter | 8 mm |
| Associated sleeve reference | H24140 |
| Radial clearance class | CN |
| Mass | 52,6 kg |
| C - Dynamic load | 2130000000 mN |
| C0 - Static load | 2930000000 mN |
| Cu - Fatigue limit load | 265000000 mN |
| e - Coefficient | 0.39 |
| Y0 - Static axial load coefficient | 1.7 |
| Y1 - Lower axial load coefficient | 1.74 |
| Y2 - Upper axial load coefficient | 2.59 |
| N ref - Reference thermal speed | 6000 °/s |
| N lim - Mechanical Limit Speed | 9000 °/s |
| Tmin - Min operating temperature | 233,15 °K |
| Tmax - Max operating temperature | 473,15 °K |
| BPFO - Over rolling frequency on outer ring (60 rpm) | 8,652 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 11,349 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 7,049 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 3,525 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,433 Hz |
| da max - Max shoulder diameter IR | 0 mm |
| da min - Min shoulder diameter IR | 214 mm |
| Da max - Max shoulder diameter OR | 326 mm |
| ra max - Max shaft & housing fillet radius | 2,5 mm |
