SNR

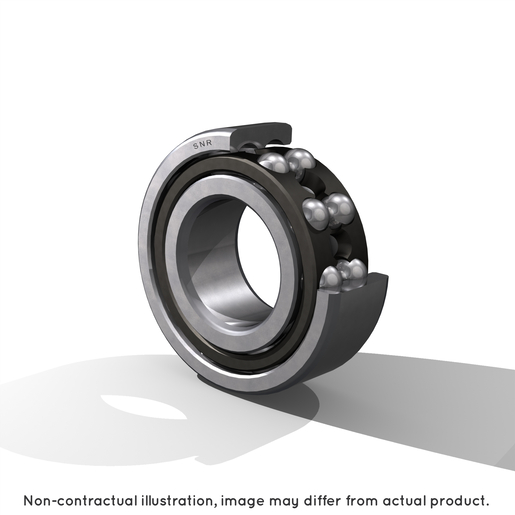

Cuscinetti radiali a sfere 4203A
Cuscinetto SNR 4203A, Ø17×40×16 mm. Richiedi offerta — spedizione in tutto il mondo.
Tipo Cuscinetti radiali a sfere
Dimensioni
Ø 17 × 40 × 16 mm
d17Ø foro (mm)
×
D40Ø esterno (mm)
×
B16Larghezza (mm)
Richiesta offerta
Disponibile
Specifiche tecniche
| Brand | SNR |
| d - Internal diameter | 17 mm |
| D - External diameter | 40 mm |
| B - Bearing/Inner ring width | 16 mm |
| d1 - External diameter inner ring | 24 mm |
| D1 - Inner diameter outer ring | 33 mm |
| rs - Min fillet radius | 0,6 mm |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,09 kg |
| C - Dynamic load | 14700000 mN |
| C0 - Static load | 9500000 mN |
| Cu - Fatigue limit load | 590000 mN |
| f0 - Coefficient | 13.1 |
| N ref - Reference thermal speed | 90000 °/s |
| N lim - Mechanical Limit Speed | 102000 °/s |
| Tmin - Min operating temperature | 253,15 °K |
| Tmax - Max operating temperature | 393,15 °K |
| BPFO - Over rolling frequency on outer ring (60 rpm) | 3,053 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 4,947 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,382 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 1,994 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 3,987 Hz |
| da min - Min shoulder diameter IR | 21 mm |
| Da max - Max shoulder diameter OR | 36 mm |
| ra max - Max shaft & housing fillet radius | 0,6 mm |
