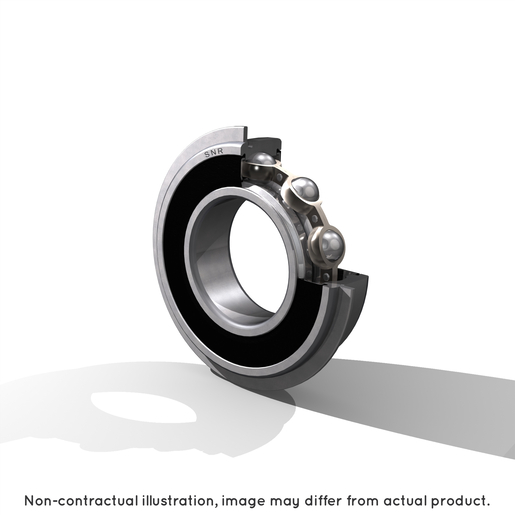

Cuscinetti radiali a sfere 6006NREE

Name: Cuscinetti radiali a sfere 6006NREE SNR
Brand: SNR
SKU: 6006NREE
Availability: InStock

Cuscinetto SNR 6006NREE, Ø30×55×13 mm. Richiedi offerta — spedizione in tutto il mondo.

Codice: 6006NREE

Dimensioni Ø 30 × 55 × 13 mm

d30Ø foro (mm)

D55Ø esterno (mm)

B13Larghezza (mm)

Richiesta offerta

Disponibile

Specifiche tecniche

Brand	SNR
d - Internal diameter	30 mm
D - External diameter	55 mm
B - Bearing/Inner ring width	13 mm
d1 - External diameter inner ring	38,2 mm
D1 - Inner diameter outer ring	49,5 mm
a min - Min position Groove	1,88 mm
a max - Max position groove	2,08 mm
Ca min - Mini segment position	2,9 mm
Ca max - Max segment position	3,2 mm
rs - Min fillet radius	1 mm
rNs - Min fillet radius	0,5 mm
D3 - Max bottom groove diameter	52,6 mm
b min - Min groove width	1,35 mm
b max - Max groove width	1,65 mm
r0 max - Max bottom groove radius	0,4 mm
D4 max - Max outer diameter of assembled stop ring	60,7 mm
f - Stop ring thickness	1,07 mm
Snap ring reference	R55
Radial clearance class	CN
Mass	0,116 kg
C - Dynamic load	13900000 mN
C0 - Static load	8300000 mN
Cu - Fatigue limit load	380000 mN
f0 - Coefficient	14.8
N lim - Mechanical Limit Speed	45000 °/s
Tmin - Min operating temperature	253,15 °K
Tmax - Max operating temperature	393,15 °K
BPFO - Over rolling frequency on outer ring (60 rpm)	4,58 Hz
BPFI - Over rolling frequency on inner (60 rpm)	6,42 Hz
BSF - Over rolling frequency on rolling element (60 rpm)	5,81 Hz
BRF - Rotational frequency – rolling element (60 rpm)	2,905 Hz
FTF - Rotational frequency - cage (60 rpm)	0,416 Hz
da min - Min shoulder diameter IR	35 mm
da max - Max shoulder diameter IR	63,7 mm
Da max - Max shoulder diameter OR	50 mm
ra max - Max shaft & housing fillet radius	1 mm
rNa max - Max fillet radius on segment side	0,5 mm
Db min - Min stop ring position diameter	61,5 mm
