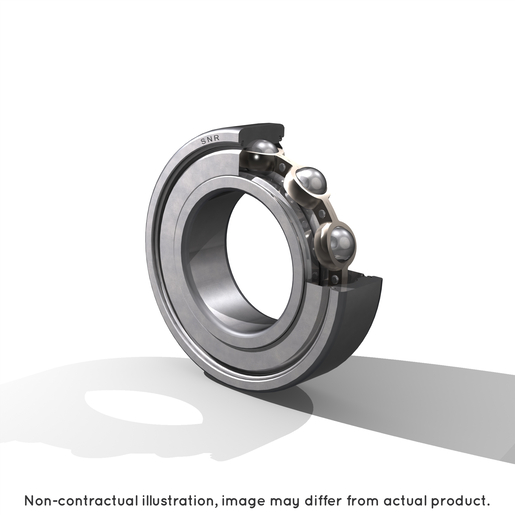

Cuscinetti radiali a sfere 6009FT150ZZ
Cuscinetto SNR 6009FT150ZZ, Ø45×75×16 mm, tenuta 2Z. Richiedi offerta — spedizione in tutto il mondo.
Tipo Cuscinetti radiali a sfere
Dimensioni
Ø 45 × 75 × 16 mm
d45Ø foro (mm)
×
D75Ø esterno (mm)
×
B16Larghezza (mm)
Richiesta offerta
Disponibile
Specifiche tecniche
| Brand | SNR |
| d - Internal diameter | 45 mm |
| D - External diameter | 75 mm |
| B - Bearing/Inner ring width | 16 mm |
| d1 - External diameter inner ring | 54,2 mm |
| D1 - Inner diameter outer ring | 68,4 mm |
| rs - Min fillet radius | 1 mm |
| Radial clearance class | C3 |
| Mass | 0,243 kg |
| C - Dynamic load | 22100000 mN |
| C0 - Static load | 15100000 mN |
| Cu - Fatigue limit load | 690000 mN |
| f0 - Coefficient | 15.3 |
| N lim - Mechanical Limit Speed | 49200 °/s |
| Tmin - Min operating temperature | 243,15 °K |
| Tmax - Max operating temperature | 423,15 °K |
| BPFO - Over rolling frequency on outer ring (60 rpm) | 5,554 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 7,446 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 6,727 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 3,364 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,427 Hz |
| da min - Min shoulder diameter IR | 50 mm |
| da max - Max shoulder diameter IR | 54,2 mm |
| Da max - Max shoulder diameter OR | 70 mm |
| ra max - Max shaft & housing fillet radius | 1 mm |
