Manutenzione e monitoraggio EAZ F202MV

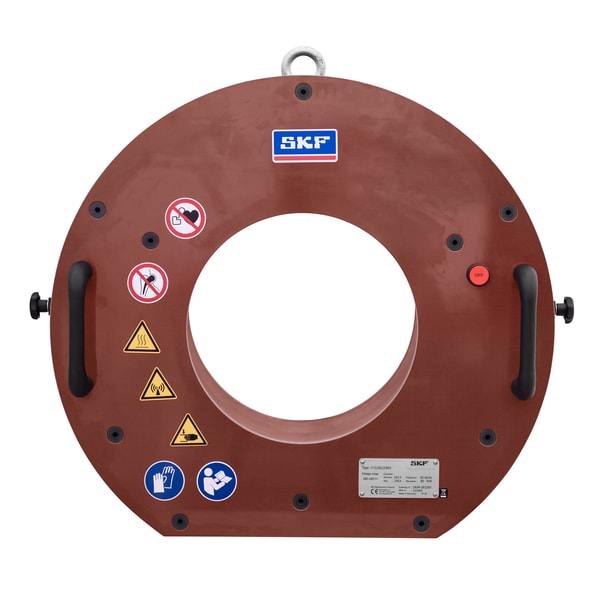

Fixed induction heater coil
Tipo Manutenzione e monitoraggioRichiesta offerta
Specifiche tecniche
| Workpiece bore diameter (dismounting) (mm) | 180, 180 |
| Dimensioni (L x P x H) | 209 x 570 x 535 mm |
| Applicazioni consigliate | Train wheels;OEM;Wind turbines |
| Tipo | Coil for the EAZ heater for specific roller bearing inner rings |
| Series | EAZ F |
| Heating method | Induction, low frequency |
| Suitable for mounting | Sì |
| Suitable for dismounting | Yes. Specific cylindrical bearing inner ring. |
| Workpiece bore diameter (mounting) (mm) | |
| Workpiece outer diameter (mm) | 202, 202 |
| Workpiece width (max) (mm) | 168 |
| Workpiece cross section height (max) (mm) | 11 |
| Bearing inner ring fit (max.) | p6 |
| Necessaria profondità libera dietro al cuscinetto (mm) | 40 |
| Tensione | 400 - 480 V |
| Frequenza di tensione | 50 / 60 Hz |
| Current (max) (A) | 95 |
| Heating temperature (max) (°C) | 200 |
| Materiale del supporto | Resina epossidica caricata con fibra di vetro, altro |
| Colore | Marrone |
| Contenuto | EAZ coil;Power cable,Heat Support legs;One pair of Heat and oil resistant gloves TMBA G11H; Temperature Probe TMBH 1-3 |
| Peso netto prodotto (kg) | 55 |
| Codice eClass | 23-05-19-01 |
| Codice UNSPSC | 40101831 |
