SKF

Manutenzione e monitoraggio HN 4-16/SET

Name: Manutenzione e monitoraggio HN 4-16/SET SKF
Brand: SKF
SKU: HN 4-16/SET
Availability: PreOrder

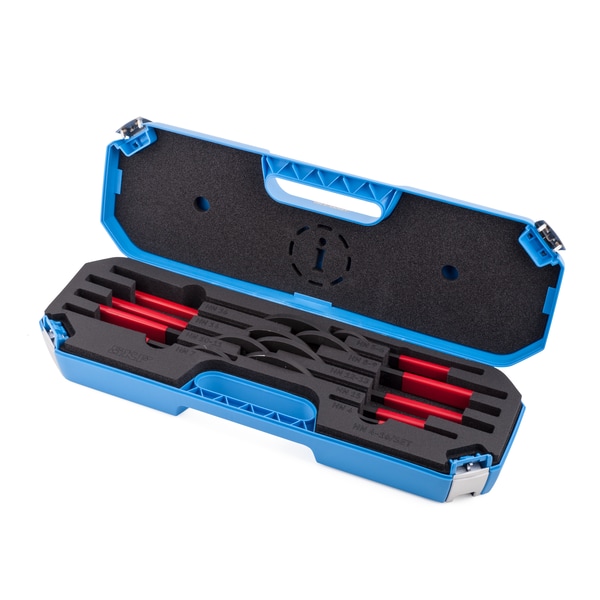

Set of Hookspanners, size 4 to 16, supplied in carrying case

Codice: HN 4-16/SET

Richiesta offerta

Specifiche tecniche

Outer diameter lock nut (range) (d₃) (mm)	105, 30
Dimensioni custodia (l x h x w)	530 x 85 x 180 mm
Applicazioni consigliate	As a set suitable for a very wide selection of applications where various lock nuts are used. Designed for tightening and loosing said lock nuts on shafts, adapter sleeves, and withdrawal sleeves.
Series	Hook spanner, standard, HN
Version	Kit
Tipo	Model B
Consente il montaggio dei cuscinetti	Yes, for the smaller sizes the angle method or with clearance reduction measurement
Compatibile con ghiere di bloccaggio in supporti ritti in due metà (SNL) di SKF	No
Locknut size	16, 4
Suitable SKF Locknut	KM 4 to 16, KMF 4 to 16, KMFE 4 to 16, KMK 4 to 16, KMT 1 to 15, N 04 to 16, AN 14 to 16, DIN 1804M: M14x1,5, M70x1,5
Contenuto	9x Hookspanners (HN 4, HN 5-6, HN 7, HN 8-9, HN 10-11, HN 12-13, HN 14, HN 15, HN 16), 1x Carrying case (size X)
Peso netto prodotto (kg)	3.39
Codice eClass	23-05-19-01
Codice UNSPSC	27111712
