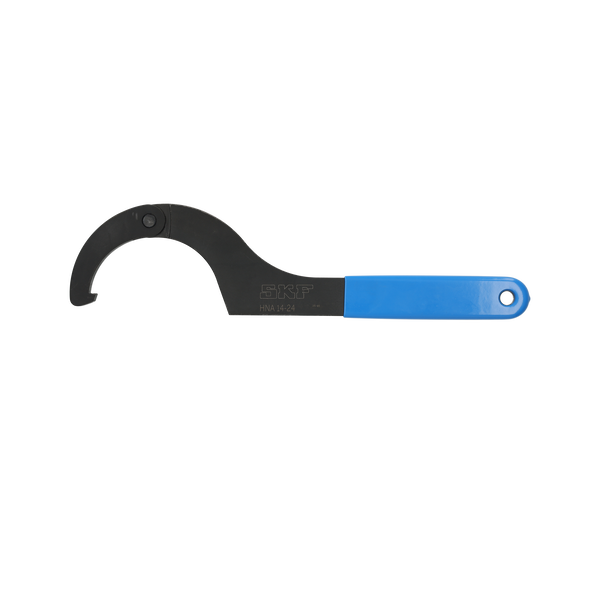

Name: Manutenzione e monitoraggio HNA 14-24 SKF
Brand: SKF
SKU: HNA 14-24
Availability: PreOrder

Specifiche tecniche

Outer diameter lock nut (range) (d₃) (mm)	155, 90
Nose width (Nₖ) (mm)	12
Nose height (Nₕ) (mm)	5.5
Thickness (n) (mm)	12
Length (L) (mm)	332
Working length (l) (mm)	275
Height (H) (mm)	83
Applicazioni consigliate	A versatile tool, covering multiple lock nut sizes, when working with of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in various applications.
Series	Hook spanner, adjustable, HN A
Tipo	Model C
Consente il montaggio dei cuscinetti	No
Compatibile con ghiere di bloccaggio in supporti ritti in due metà (SNL) di SKF	No
Locknut size	24, 14
Suitable SKF Locknut	KM 14, KM 15, KM 16, KM 17, KM 18, KM 19, KM 20, KM 22, KM 24, KMF 14, KMF 15, KMF 16, KMF 17, KMF 18, KMF 19, KMF 20, KMFE 14, KMFE 15, KMFE 16, KMFE 17, KMFE 18, KMFE 19, KMFE 20, KMFE 21, KMFE 22, KMFE 24, KMK 14, KMK 15, KMK 16, KMK 17, KMK 18, KMK 19, KMK 20, KML 24, KML 26, KMT 13, KMT 14, KMT 15, KMT 16, KMT 17, KMT 18, KMT 19, KMT 20, KMT 20, KMT 22, KMT 24, KMT 24, N 14, N 15, N 16, N 17, N 18, N 19, N 20, N 21, N 22, N 24, N 022, N 024, AN 15, AN 16, AN 17, AN 18, AN 19, AN 20, AN 21, AN 22, AN 24, DIN 1804M: M58x1,5, M60x1,5, M62x1,5, M65x1,5, M68x1,5, M70x1,5, M72x1,5, M75x1,5, M80x2, M85x2, M90x2, M95x2, M100x2, M105x2 M110x2
Materiali	Acciaio a medio tenore di carbonio, temprato e bonificato
Movimentazione materiali	Plastica morbida durevole
Rivestimento	Ossidazione nera
Colore	Black, with blue handle
Peso netto prodotto (kg)	0.6
Codice eClass	23-05-19-01
Codice UNSPSC	27111712
