SKF
Lubrificazione TLDD 1/US-GAT

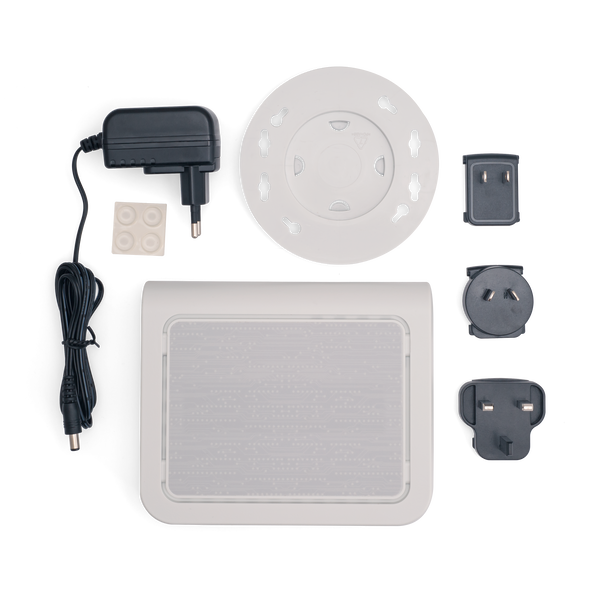

Gateway for Connected single-point automatic lubricators (North American version)
Tipo LubrificazioneRichiesta offerta
Specifiche tecniche
| Dimensioni (L x P x H) | 165 x 133 x 45 mm |
| Lunghezza del cavo (mm) | 1520 |
| Adattatore | 100-240 V, 50/60 Hz, plugs for EU, US, UK, AU included |
| Amperaggio (max) (A) | 0.4 |
| Applicazioni consigliate | For installation either indoor or in a well sealed closed cabinet |
| Cloud interface | Webapp: lubrication-cloud.skf.com |
| Communication security | Encrypted |
| Contenuto | Gateway;Power adapter with plugs for EU US, UK,and AU;Installation plate |
| Data connection to Lubrication Cloud platform (ml/d) | GSM 4G, 3FF micro sim card pre-installed, not exchangeable |
| Data frequency range (LoRa) (MHz) | 928, 902 |
| Data transfer protocol between lubricator and gateway | Private license free long range wide area network (LoRa) |
| Fonte di alimentazione | Mains |
| Gamma di alimentazione (V) | 240, 100 |
| Grado di protezione (IP) | IP 65 |
| Indicatore a LED | 3 LED's indicating the connectivity status (status, LoRa, cellular) |
| Intervallo di temperature ambientali (°C) | 60, -10 |
| Max. recommended distance to lubricator (m) | 300 |
| Number of connected lubricators (max.) | Virtually unlimited |
| Suitablility for Regions | North and Central America |
| Temperatura di stoccaggio consigliata (°C) | 40, 0 |
| Umidità relativa | 20 to 90 %, non-condensing |
| Peso netto prodotto (kg) | 0.466 |
| Codice eClass | 23-06-10-14 |
| Codice UNSPSC | 15121902 |
