SKF
Manutenzione e monitoraggio TMBR NU2224E

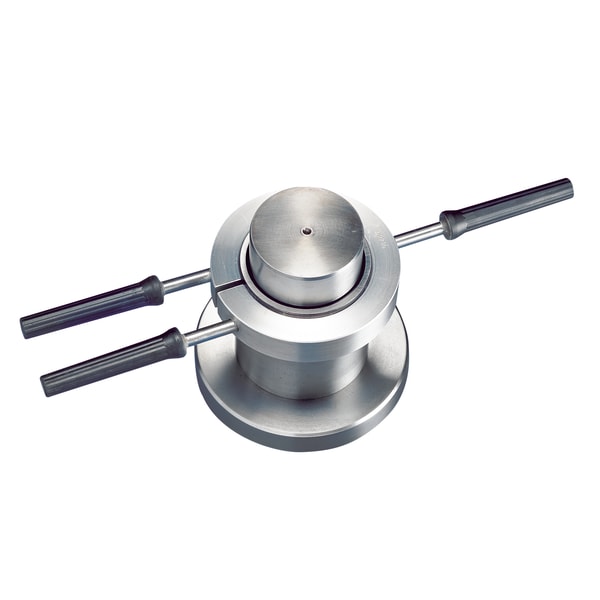

Aluminium dismounting ring
Tipo Manutenzione e monitoraggioRichiesta offerta
Specifiche tecniche
| Workpiece bore diameter (dismounting) (mm) | 120, 120 |
| Dimensioni (L x P x H) | 515 x 215 x 58 mm |
| Applicazioni consigliate | Power transmission;Gearboxes;Electric motors;Pumps |
| Tipo | Heating ring |
| Series | TMBR |
| Heating method | External |
| Suitable for mounting | No |
| Suitable for dismounting | 'Yes. Specifically for the NU2224E cylindrical bearing inner ring. |
| Workpiece outer diameter (mm) | 143.5, 143.5 |
| Workpiece width (max) (mm) | 58 |
| Workpiece cross section height (max) (mm) | 11.75 |
| Aluminium ring heating temperature (°C) | 280 |
| Heating temperature (max) (°C) | 300 |
| Materiali | Alluminio |
| Rivestimento | Hard anodized |
| Colore | Blank metallic |
| Contenuto | Aluminium ring with handles; 1 pair of heat resistant gloves (TMBA G11) |
| Peso netto prodotto (kg) | 2.6 |
| Codice eClass | 23-05-19-01 |
| Codice UNSPSC | 40101831 |
