Name: Manutenzione e monitoraggio TMHS 100 SKF
Brand: SKF
SKU: TMHS 100
Availability: PreOrder

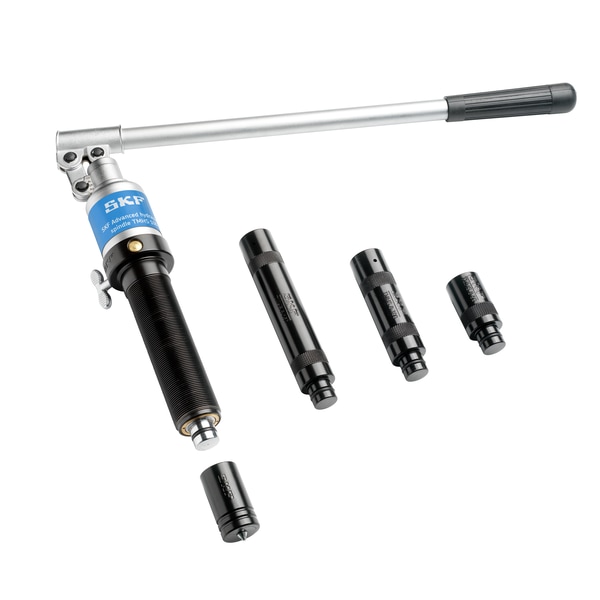

Manutenzione e monitoraggio TMHS 100

Advanced hydraulic spindle

Codice: TMHS 100

Tipo Manutenzione e monitoraggio

Richiesta offerta

Specifiche tecniche

Peso netto prodotto (kg)	4.44
Codice eClass	23-05-19-01
Codice UNSPSC	27111712
Applicazioni consigliate	For use as force generator with desingated SKF pullers in the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft.
Caratteristiche speciali	Integrated safety valve; Closed hydraulic system
Pulling force (max) (kN)	100
Hydraulic spindle, piston stroke (mm)	85
Filettatura di collegamento	UN 1.5 x 16 tpi
Total spindle length	495
Spindle nose piece	yes, ⌀ 30 mm
Reach (max) (mm)	550, 169
Handle length (Lₕ) (mm)	450
Movimentazione materiali	Steel with Rubber grip
Materiali	Alloy engineering steels, hardened and tempered; Rubber
Rivestimento	Spindle and handle bar: chrome coated;Spindle body, nose and extention pieces black phosphated
Colore	Metallic and black
Temperatura di stoccaggio consigliata (°C)	40, -5
Umidità relativa	< 75%
Contenuto	1× Hydraulic spindle; 3× Extension pieces: 50, 100 and 150 mm;1× Nosepiece;Handle;Handlebar;QR code card
