SKF
Manutenzione e monitoraggio TMHS 75

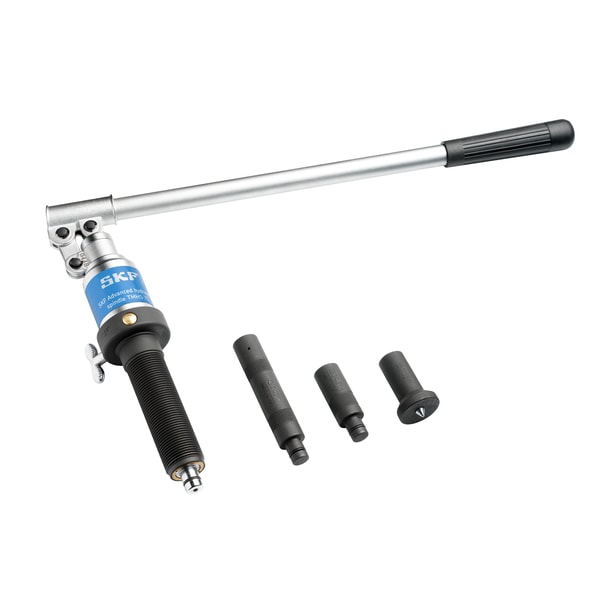

Advanced hydraulic spindle
Tipo Manutenzione e monitoraggioRichiesta offerta
Specifiche tecniche
| Peso netto prodotto (kg) | 2.79 |
| Codice eClass | 23-05-19-01 |
| Codice UNSPSC | 27111712 |
| Applicazioni consigliate | For use as force generator with desingated SKF pullers in the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. |
| Caratteristiche speciali | Integrated safety valve; Closed hydraulic system |
| Pulling force (max) (kN) | 75 |
| Hydraulic spindle, piston stroke (mm) | 75 |
| Filettatura di collegamento | UN 1.25 x 12 tpi |
| Total spindle length | 520 mm |
| Spindle nose piece | yes, ⌀ 30 mm |
| Reach (max) (mm) | 391, 164 |
| Handle length (Lₕ) (mm) | 450 |
| Movimentazione materiali | Steel with Rubber grip |
| Materiali | Alloy engineering steels, hardened and tempered; Rubber |
| Rivestimento | Spindle and handle bar: chrome coated;Spindle body, nose and extention pieces black phosphated |
| Colore | Metallic and black |
| Temperatura di stoccaggio consigliata (°C) | 40, -5 |
| Umidità relativa | < 75% |
| Contenuto | 1× Hydraulic spindle;2× Extension pieces:50 and 100 mm;Nosepiece;Handle;Handlebar;QR code card |
