Name: Manutenzione e monitoraggio TMMS 50 SKF
Brand: SKF
SKU: TMMS 50
Availability: PreOrder

Manutenzione e monitoraggio TMMS 50

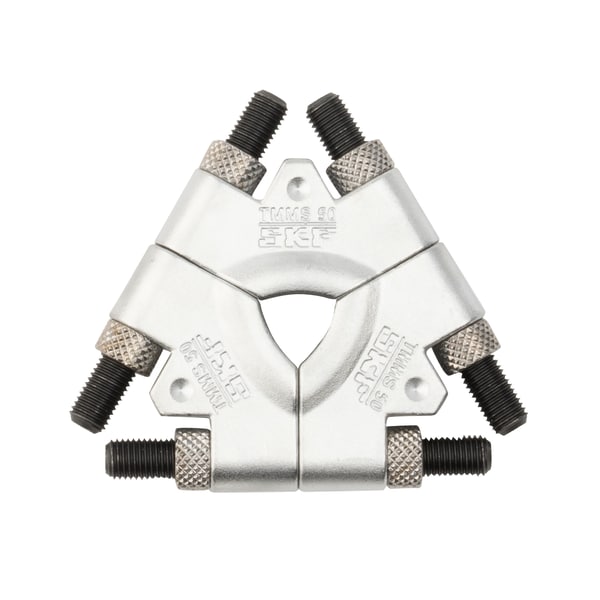

Tri-section pulling plate

Codice: TMMS 50

Tipo Manutenzione e monitoraggio

Richiesta offerta

Specifiche tecniche

Peso netto prodotto (kg)	0.514
Codice eClass	23-05-19-01
Codice UNSPSC	27111712
Applicazioni consigliate	For use with a puller in the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. To asssist a three armed puller where the claws of the puller can't grip the component properly.
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)	Sì
Pulling force (max) (kN)	80
Suitable for bearing dismounting from a Tapered seating (conical shaft)	Sì
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)	Sì
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)	No
Suitable for workpiece dismounting from a Housing	No
Dismounting force generation	by pullerarms
Section plates provided with threaded pullinghole	No
Materiali	Acciai legati ingegnerizzati, temprati e bonificati
Rivestimento	Rods: black phosphated;Plates and nuts, Zinc coated
Colore	Metallic and black
Larghezza di presa esterna (mm)	50, 12
Pulling rod distance (mm)	30, 20
Larghezza piastra (mm)	32
Plate height (mm)	15
Plate tip width (mm)	4
Plate tip height (mm)	2
