NTN
Supporti UCF210D1
Supporto NTN UCF210D1. Richiedi offerta — spedizione in tutto il mondo.
Tipo SupportiRichiesta offerta
Disponibile
Specifiche tecniche

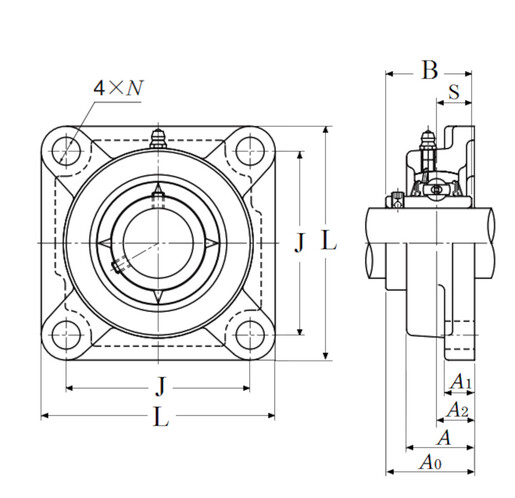

| Brand | NTN |
| A - Housing height | 40 mm |
| Total height (A0) | 54,6 mm |
| Flange thickness (A1) | 16 mm |
| Distance from mounting surface to raceway (A2) | 22 mm |
| Insert IR width (B) | 51,6 mm |
| Bore dia. (shaft diameter) | 50 |
| Distance of attachment bolt holes (J) | 111 mm |
| Overall length (L) | 143 mm |
| Dia. of attachment bolt hole (N) | 16 mm |
| Distance IR face - middle of bearing raceway (S) | 19 mm |
| Mass | 2,5 kg |
| Housing number | F210D1 |
| Bearing number | UC210D1 |
